SS Gear Pump Manufacturer
Dev Engineers, a leading manufacturer and supplier of Stainless Steel Gear Pump and SS gear pump in Ahmedabad, Delhi, Mumbai, Kolkata, Chennai, Bangalore, Indore, Ludhiana, Pune and Coimbatore.

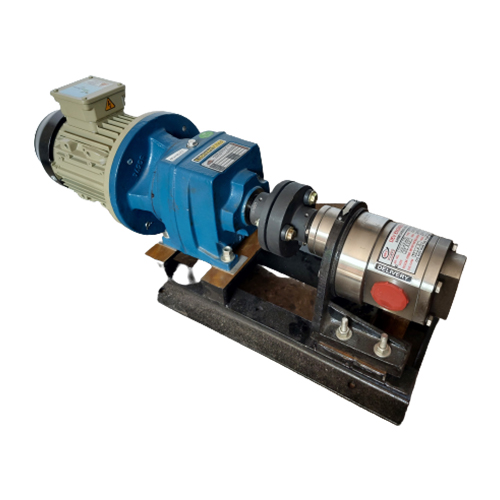

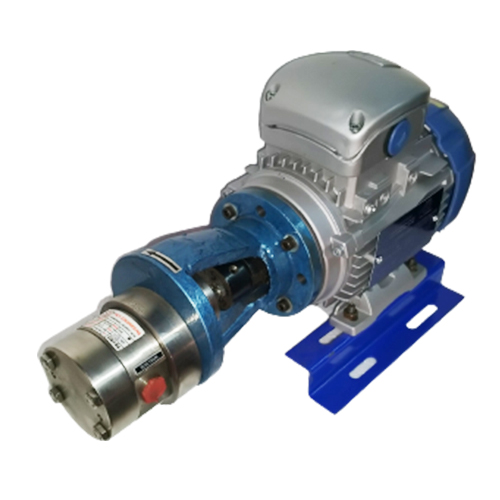

Being a leading SS Gear Pump manufacturer, we offers model DGPSS/SUS Stainless Steel Gear Pump. It is self priming, foot mounting type positive displacement type pump. Our SS Gear Pump are light weighted it delivers the desired output with accurate and speedy functioning. SS Gear Pump are meticulously crafted using high-grade stainless steel - 316, ensuring unparalleled durability, corrosion resistance, and hygiene standards, making them ideal for a wide range of industries including food & beverage, pharmaceuticals, chemicals and petrochemicals. Stainless steel gear pump are manufacturered using a high quality materials, it gives them a longer life and assists in trouble free accurate performance of the product. In addition to this, these Gear Pumps give zero leakage and can be maintained easily with no lubrication required.
SS Gear Pump Supplier
Being a leading Stainless Steel Gear Pump Supplier, we successfully cater to the diverse requirements of our clients. Thus we offer high quality SS gear pumps in various technical specifications to fulfill the specific needs of clients. We Focus on the affordability while manufacturing to supply a best quality of rotary gear pumps compared to other pump types, to make a choice for budget-conscious projects of our clients. Te materials used for producing these SS Gear Pumps are of high quality and are available in various sizes and are equipped to deliver medium capacities at higher pressure.
What is working of SS Gear Pump?
The working operation of a single-stage SS gear pump depends on the synchronization of rotating gears. A casing creates chambers that alternately is filled with fluid on the suction side and expel the fluid on the discharge side, providing a steady flow of liquid through the SS gear pump. DGPSS /SUS series SS Gear Pump are Horizontal Bracket Cum Foot Mount Self-Priming Positive Displacement Pumps. The Stainless Steel Gear Pumps are also used for exchange of non-destructive fluids, fuel oils, diesel oils, and so forth, with worked in alleviation valve place.
These pumps are designed to be easy to clean and maintain with a three-piece construction. The back cover can be simply removed by four Hex bolts. The SS gear pump has a single-helical SS-316 drive and shaft, which are nitrated to give longer life with trouble free performance.

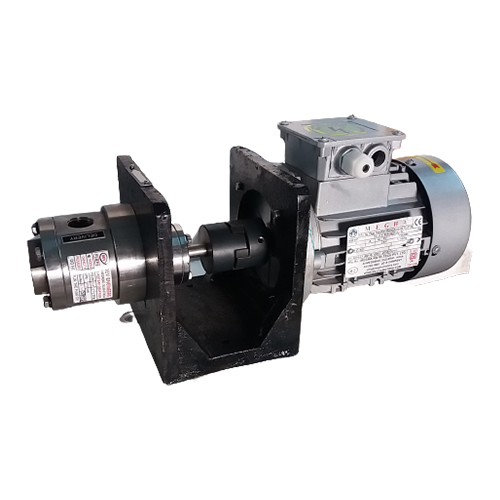

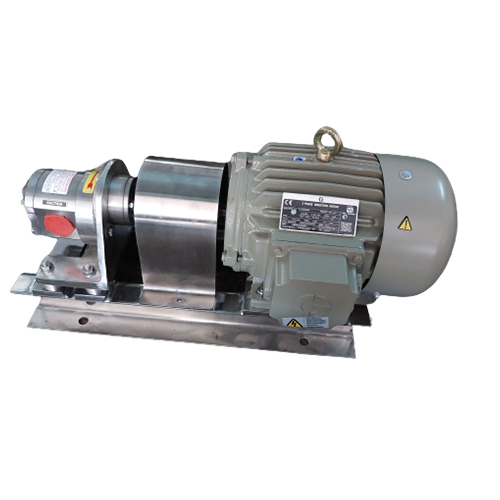

The shaft is supported on self lubricating type PTFE coated Self Lubricated Dry Bush Bearings / Bronze / Glass Field Teflon ( GFT ) Bush Bearings and the shaft sealing is done by special PTFE Food Grade Pure PTFE Gland Packing or Mech. Seal for leak proof working with higher temperature range. The right angle L-type mounting bracket facilitates foot mounting of the pump on base plate with electric motor. The inlet and outlet ports are Inline as per BSP Screw end ranging from ¼” to 2 ½” having capacity range 2.5 LPM to 500 LPM.
These pumps has maximum pressure range up to 10 Kg/Cm2 and has suction lift of up to 5 meters at rated speed of 1440 rpm. The std. design of these pumps are without pressure relief valve. The Pressure Relief valve is fitted externally and it will supply on special request as an optional.

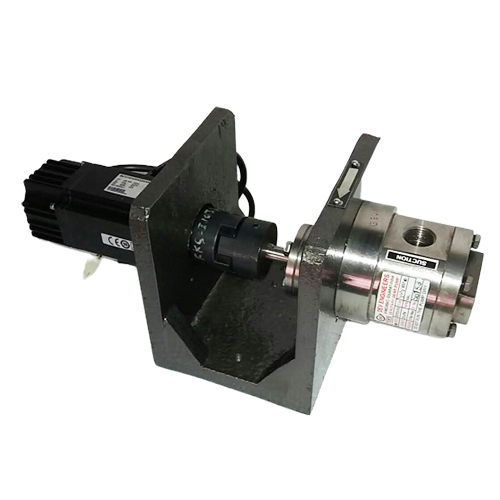

Above Stainless Steel Gear pump are also used as Metering / Dosing Pumps with the help of AC frequency drive and also used for volumetric Liquid filling with Servo & Stepper Motor for continuous, constant and pulsation free flow. SS Gear Pump is used for transferring corrosive, hygienic, and viscous liquids. There are several advantages of SS Gear Pumps like low maintenance, ability to handle a wide range of viscous fluids.
Stainless Steel Gear Pump Technical Specifications
| PUMP MODEL No. Series DGPSS Having Wearing Plate Cum Bush | Pump Model No. SERIES Having Sleeve Bush | PORT SIZE BSP Screw End | CAPACITY @ 1440 rpm | |
|---|---|---|---|---|
| LPM | US GPM | |||
| DGPSS-025R | SUS-025 | ¼ “ X ¼ “ | 2.5 | 0.66 |
| DGPSS-025 | SUS-025 | 5 | 1.3 | |
| DGPSS-038 | SUS-038 | 3/8” x 3/8” | 10 | 2.2 |
| DGPSS-050R | SUS-050 R | ½ “ X ½ “ | 15 | 4.0 |
| DGPSS-050 | SUS-050 | 25 | 6.6 | |
| DGPSS-075 | SUS-075 | ¾ “ X ¾ “ | 33 | 8.8 |
| DGPSS-100 | SUS-100 | 1” X 1” | 50 | 13.2 |
| DGPSS-125 | SUS-125 | 1¼ “ X 1¼ “ | 83 | 26.4 |
| DGPSS-150 | SUS-150 | 1 ½” X 1 ½ “ | 125 | 33.0 |
| DGPSS-200 | SUS-200R | 2” X 2 “ | 150 | 39.6 |
| DGPSS-200 | SUS-200 | 200 | 52.8 | |
| DGPSS-250R | SUS-250R | 2 ½ “ X 2½ “ | 300 | 80.0 |
| DGPSS-250 | SUS-250 | 350 | 92.5 | |
| DGPSS-300 | SUS-300 | 3” x 3 “ | 500 | 132.2 |
SS Gear Pump Materials of Constructions
| Part No. | Part Details | Standard Design | Optional Design | ||
|---|---|---|---|---|---|
| 1 | Pump Body | CF-8M ( SS-316 ) | SS-316 L | ||
| 2 | Front Cover | CF-8M ( SS-316 ) | SS-316 L | ||
| 3 | Back Cover | CF-8M ( SS-316 ) | SS-316 L | ||
| 4 | Seal Cover | SS-316 | SS-316 L | ||
| 5 | Gears | SS-316 | SS-316 L | ||
| 6 | Shaft | SS-316 | SS-316 L | ||
| 7 | Bush Bearings | PTFE Coated Self Lubricated / Glass Field Teflon | Bronze / PEEK / 85-5-5-5 | ||
| 8 | Mounting Bracket | Cast Iron | SS-304 | ||
| 9 | L-N bolt / Hex Bolt | SS - 304 | SS-304 | ||
| 10 | Shaft Seal | Viton®/ FKM Oil Seal having SS Spring | Mech. Seal | ||
| 11 | Packing / Gasket | PTFE | PTFE | ||
| 12 | Key for couple | SS-410 | SS-410 | ||
SS Gear Pump Features
- It is made from all stainless steel SS-316 construction.
- Easy to clean and maintain with a three-piece construction.
- High Temperature Resistance due to high melting point.
- Also compatible with hazardous chemicals and fluids, including acids, bases, solvents, and caustic solutions.
- Corrosion Resistance.
SS Gear Pump Applications
DGPSS Series Stainless Steel Gear Pumps are used for handling of Hygienic & Corrosive viscous liquids and chemicals
- Food product like Ghee, Butter, Pulp, Vegetable sauce.
- Pharmaceutical industries.
- Cosmetic industries.
- Dyes and Resins.
- Liquid Filling machine.
