Economy RGP / RGX Series Pump Manufacturer

Design Features

The Economy RGP / RGX Series Gear Pumps are Positive Displacement Pumps. The Pump's main elements are Pump Body & Back Cover fitted with a pair of single helical modified profile alloy steel gears , which are shrunk / Press fitted on carbon steel harden and ground shaft. And it is supported on either side by 04 Nos. of self lubricated Dry or sintered bush bearings , which ensures longer life and smooth performance of pumps. The shaft sealing is by NBR oil seal , which ensures leak proof working than gland packing design. The in - built pressure safety valve design gives safety against overloading of electric motor and release excess pressure . This pumps are available in different sizes and capacity with maximum working pressure 10 Kg/cm2 from 2.5 LPM to 500 LPM with ¼” to 3” sizes.

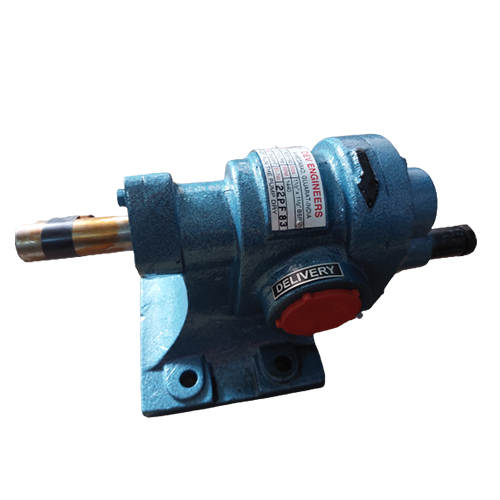

RGP-Series Foot Mounted Pumps

“ DEV ” make RGP Series pump's design is Horizontal Foot Mount Positive Displacement Pumps and it has BSP Screw End Inlet & outlet Inline ports . Which are most efficient and economic range with variety of materials for transferring of oils & viscous liquid, which has special features like Simple & compact in design, Low Noise Level, High in Efficiency, Self Priming, and Easy to maintain.

RGX-Series Flange / Bracket Mount Pumps

“DEV “ make RGX Series Pump's design is flange/ Bracket mounting pumps . Which are suitable for mounting on any equipment or machine horizontally or Vertically Boths. The company is also provide right angle L-type mounting bracket in different frame size to make it foot type pump. By this during the maintenance period you can easily dismantle the pump without disturbing the alignment with motor , which is the main advantage of flange / Bracket Mounting type gear pump .

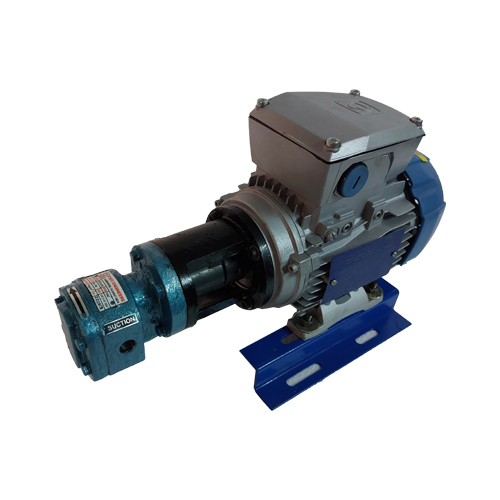

RGXM-Series Mononlock Pumps

The RGXM-Series Flange / Bracket mount pumps are coupled with Foot cum face or Flange mounted electric motor with the help of adaptor to design Mono-block type for compactness and to avoid frequent alignment problems. Above pumps are also supplied with standard make electric motor also.

Technical Specification – RGP Foot Mounted Pump

Pump Model No	Size in BSP Suc. x Dely BSP Screw end	Capacity at 1440 RPM
Pump Model No	Size in BSP Suc. x Dely BSP Screw end	LPM	US GPM
RGP-025	¼” x ¼”	5	1.3
RGP-050	¾” x ¾”	30	1.8
RGP-100	1” x 1”	50	13.3
RGP-125	1¼” x 1¼”	75	20
RGP-150	1½” x 1½”	110	29
RGP-200	2” x 2”	225	59.4
RGP-250	2 ½”x 2 ½”	350	92.5
RGP-300	3” x 3”	500	132.5

Technical Specification - RGX Flange / Bracket Mounted Pump

Pump Model No	Size in BSP Suc. x Dely BSP Screw end	Capacity at 1440 RPM
Pump Model No	Size in BSP Suc. x Dely BSP Screw end	LPM	US GPM
RGX-025	¼” x ¼”	2.5	0.65
RGX-025	¼” x ¼”	5.0	1.3
RGX-050	½” x ½”	10	2.65
RGX-050	½” x ½”	15	4.0
RGX-075	¾” x ¾”	20	5.3
RGX-075	¾” x ¾”	25	6.65
RGX-100	1” x 1”	35	9.3
RGX-100	1” x 1”	50	13.3
RGX-125	1¼” x 1¼”	60	16
RGX-125	1¼” x 1¼”	75	20
RGX-125	1¼” x 1¼”	60	16
RGX-125	1¼” x 1¼”	75	20
RGX-150	1½” x 1½”	100	26.6
RGX-150	1½” x 1½”	125	33.3
RGX-200	2” x 2”	150	40
RGX-200	2” x 2”	200	20
RGX-250	2 ½”x 2 ½”	300	79.3
RGX-250	2 ½”x 2 ½”	350	93
RGX-300	3” x 3”	415	110
RGX-300	3” x 3”	500	132.5

Materials of Constructions

Part No	Part Details	Standard Design	Optional Design on request
1	Pump Body	Cast Iron Graded	SG IRON , Cast Steel Gr. WCB
2	Back Cover	Cast Iron Graded	SG IRON , Cast Steel Gr. WCB
3	Gland Cover	Cast Iron Graded	SG IRON , Cast Steel Gr. WCB
4	Shaft	En-8 Harden & Grind	SAE-8620, En-24 / 31, SS-304 / 316 harden & Grind
5	Gears	En-8	En-24, En-31, SS-304 / 316 , Bronze
6	Seal	NBR Oil Seals	Viton(R) / FKM Oil Seals , Gland Packing, Mech. Seal
7	Bush Bearings	Self Lubricated Dry PTFE Coated	Cast Iron , SG Iron , Bronze
8	PRV ( Safety Valve )	Std. Alloy steel	Alloy steel , SS
9	Key	MS	MS
10	Mounting Bracket	Cast Iron L-type ( for RGX Series Only )

Application

The “ DEV ” make RGP / RGX-series foot / Flange mounted design pump are ideal for handling of all types of Oils & Viscous liquids like All Fuel Oils like Light Diesel Oil ( LDO ), Furnace Oil ( FO ), LSHS, High Speed Diesel ( HSD ), Diesel , Mineral Oils, Lubricating Oils, Fish and Animal Oils, Vegetable Oils, Tar, Asphalts, Sugar Syrups, Molasses, Starch, Soaps, Silicate, Wood Pulp, Glycol, Glycerine, Honey, Inks, Colours & Paints, Resins, Kerosene, Varnishes and viscous chemicals etc. in all types of industries for intermittent duty.

We have Exported Rotary Gear Pumps at Dubai, UAE, Africa, Kenya, Nairobi, Bangladesh, Nepal, Oman, Egypt etc. Countries
